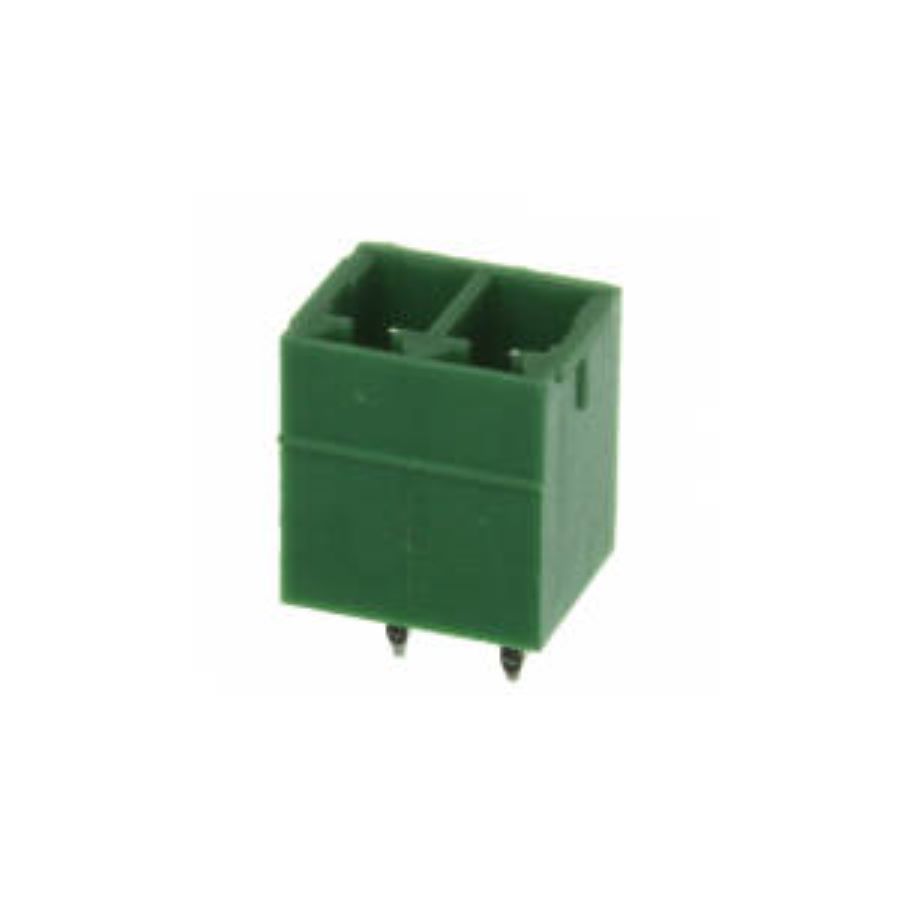

691321300002
Manufacturer:
Wurth Electronics
Mfr.Part #:
691321300002
Datasheet:
Description:
Terminal Blocks Through Hole 2 3.81 mm 10 A 300 V
| Parameter | Value |
|---|---|
| Length | 7 mm |
| Width | 8.71 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 2 |
| Height | 12.7 mm |
| Packaging | Bulk |
| Voltage Rating | 300 V |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Lead Pitch | 3.81 mm |
| Voltage | 300 V |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Pitch | 3.81 mm |
| Current | 20 A |
| Current Rating | 10 A |
| Orientation | Vertical |
| Color | Green |
| Gender | Male |
| Number of Contacts | 2 |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Number of Positions Per Level | 2 |
| Number of Levels | 1 |
| Connection Method | Plug |
Stock: 3227
Distributors
pcbx
pcbxUnit Price$0.20049
Ext.Price$0.20049
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.20049 | $0.20049 |
| 10 | $0.17772 | $1.77720 |
| 25 | $0.17404 | $4.35100 |
| 50 | $0.17044 | $8.52200 |
